Embird Studio Applique explanation

August 9th, 2017

Hi everyone,

This is just a quick little explanation about the Applique Tool and the Line Tool using the Applique Parameters. I was asked a question about this today and seeing as I did a quick little lesson to them to explain, I thought I would expand on my email a little and create a small blog post about it. This is not the blog post that I was talking about in the last post – that one is still to come when I have completed it to my satisfaction. If I cannot do that then I’ll bin it out of frustration.

This is an Embird Studio lesson. –


In Embird Studio if you wish to use the Applique Tool you need to remember that it is only useful when creating closed shapes like the image below.

So you need to use the Appliqué Tool in the same manner as the Column Tool  where you have 3 options of how you create the first side. A B or C. The only difference is that the Appliqué tool automatically adds the different stops that are required for appliqué.

You cannot create a shape like this where the end does not join to the start.

Otherwise this is what happens when you Finish it –

The beginning automatically attaches itself to the end. No way around it. So the Appliqué tool  is only useful for enclosed shapes. But you can use the Outline Tool/Line Tool and choose Appliqué in the Parameters on the right of the screen and you can then create open shapes.

Like the following –

So, if you wish to create an Applique object with an open shape – say for instance if you were creating a fairy as in the image below ( not my picture) and you needed the skirt or the wings to be applique and then the rest to be embroidery fill you would only be able to use the Line Tool set to Applique in the Parameters screen to create the shape around the edges as they are open shapes – not closed ones like a circle or square.

That’s why when I create applique I very rarely, if ever, use the actual Applique Tool. Too limited for my designs. I always use the Line Tool and choose the Applique setting.

I thought you might like a quick little look at this. Hopefully you might find this of some use.

A little Embird trick

August 9th, 2017

Hi everyone,

I’m currently writing another Hooplah post but it is bogging me down a little as I keep having a few hiccups with it so I thought I would save a draft of that post and come back to it later after I have written this shorter post. If I don’t write something soon you’ll think that I have disappeared off the face of the earth again! I haven’t had the best of years but more about that after this…..

While I was fiddling about with my post that I have currently put on the back burner I found an easy way to get a design into Embird. It’s an old trick but I had never tried it before in Embird. You probably already know it but I will show it just in case it helps someone. And it’s quick and easy.

If you use File Explorer in Windows, as I do, to look through your designs I ( know that you can do it in Embird Manager too) then you can locate a design and drag it onto an open Embird Editor page.

Open Embird and move to Embird Editor. Set your preferred Hoop size.

Open File Explorer through the Windows Start menu

Minimise both screens so that both are visible. They don’t have to be fully visible – as long as you can see part of the Embird Editor screen. I have a 17″ laptop so I have enough room to view them both.

Then move to the folder where your designs are saved.

Go to View on the Menu Bar in File Explorer and change the View to Large Icons or even Extra Large Icons, Shown below is the Large Icons view.

Select the design that you wish to use from File Explorer

Hold down the left mouse button on the selected design and drag it from the File Explorer screen across onto the Embird Editor screen. Release the mouse button.

The design is now on your Editor design page. You can repeat this trick to add more designs if you wish or just close the File Explorer screen and carry on in Editor as usual.

I know that there are other ways of getting your designs into Editor but this is another little trick for you to try.

Now I’ll be able to go back and work on my other Hooplah post and try and get it ready for you all – as long as I do not succumb to any more health issues this year.

After my last post I have been in hospital again. I am certainly getting my moneys worth out of the Public Heath system this year. I ended up in hospital again because I fell off my bike in the dark going up my steep and narrow driveway. I am on blood thinners for at least six months due to my Pulmonary Embolisms that I had in June. My doctor told me that I had to high tail it to her if I had any bleeds. Well, I had a massive bruise on my leg from the fall so I thought that I had better check it out with her. My doctor wasn’t happy with the bruise so she told me to go to my local hospital ER to have it checked – just to make sure! Of course, you can guess what happened. They admitted me and this time I was in hospital for five days. They were a little concerned that my Embolisms had caused damage to my heart when they passed through it on the way to the lungs. They thought that I may have had a heart attack!! Scary stuff! Anyway after five days of every test known to man and enough blood tests so that I felt like a porcupine I was declared as fit as a fiddle – or almost!

So I was discharged from hospital and then as soon as I got home I got a very bad strain of influenza that is doing the rounds. That set me on my ear for three and a half weeks. In fact this week is the first week that I have been well enough to be able to go out for a walk in all that time. But I survived again!! Obviously can’t kill me off that easily. However, needless to say that I am heartily sick of our winter and this whole year! Roll on some nice warm weather instead of this continuous rain, rain, rain!

Oh, and by the way, I have promised to walk my bike up my driveway in future. I’m too accident prone on our driveway and if you saw it you’d understand why!!

I must be jinxed

June 14th, 2017

Hi again,

I cannot believe that between the last entry I wrote and today I’ve been rushed to hospital AGAIN by ambulance. I think it must be something to do with writing these blogs…. Just joking!

This time is wasn’t a brain bleed, however it was just as serious, and, as my doctor later told me, I wouldn’t have survived the weekend if I hadn’t sought treatment. Lucky I did eh? I had a Pulmonary Embolism on both my lungs! Caused by DVT sitting in my right calf. It’s been sitting dormant until April when , with an aching leg, the doctor sent me for an ultrasound. They found that I had two large superficial clots in my legs and was given treatment for them. I had Clexane injections daily into my stomach – administered by me!! I think that must have been enough to make my DVT (that I didn’t know I had- although I had had that sore calf for some time) start moving towards my lungs. I couldn’t understand why I was so darned breathless. But I survived after a spell in hospital (obviously) and here I am again! On pretty heavy duty meds for now though and cannot sit too long at one time. And I’ve promised EVERYONE that I will get attention much quicker in the future! Those 9 lives of mine are running down.

But see, I cannot leave this earth yet as I have so much to tell you about in regards to software, Embird, and other great stuff ….

Have any of you got the  Silhouette software yet? Have any of you got a Cameo or similar? I’d like to know please. Please answer in the comments. And please make comments too on what you’re reading here as, unless you do, I don’t know if anyone is reading my blog posts. I’ll get discouraged if you don’t and I’ll hide in the corner and sulk as I’ll think that no-one is interested in what I have to say! ( Can’t figure out how to put smiley faces etc. into this new version of WordPress yet so you’ll just have to believe that I write these posts with a smile on my face!)

I’ll show you another very quick thing about Embird and Silhouette again today. These posts wont always be about Silhouette and Embird. Sometimes I’ll write about just Embird and also, sometimes I’ll write about the Hatch software as well, as I also have that. It’s a software created by Wilcom and I’ll tell you why I have Hatch in another blog post another day.

If you wish to create an svg file in Embird Studio that has more than one object in it and then use that svg file to create a design in Silhouette Studio you will have to do things a little differently in Embird Studio.

For example if I wanted to create this design – a pretty simple design – with the black dots on it I couldn’t just create it as usual and save it as a SVG file. I’d also have to save it as an EOF file first. I’ll show you how…..

Okay let’s open Embird Studio and go to Image/Import.

Select the design you want to use or Copy and Save it from this post and click Image/Import and Import the saved image.

*This image that I’ve used can be emailed to you upon request.

Click on Open.

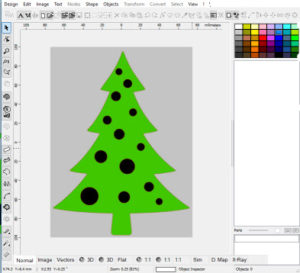

Click Yes by default for now. The image will open onto your screen in the size of Hoop or Design Page that you had previously set.

Select the Fill Tool and place your nodes around the tree shape

Adjust the shape of the nodes and Finish the object.


Now to Create the inner circles

Using the command Shape/From Library/Basic select the circle shape.

Delete the satin outline when showing in the Object Order screen.

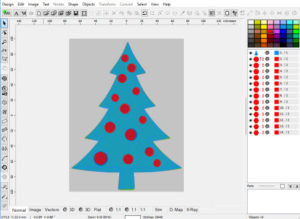

With just the Circle fill remaining select and resize the circle. Then select, right mouse click and choose Duplicate (or Copy and Paste) as many times as needed to create the remainder of the circles needed. Resize each as needed.

Generate the stitches

Select all the objects, right mouse click and choose Group1

Save as an EOF file – Design/Save As


Now go to Design/Export/and Save in your preferred folder as an SVG. You’re finished in Embird Studio so you can close the program for now.

Open Silhouette Studio. (I’m using V4 if your screen looks different)

  • I strongly advise updating to Version 4 (it’s free) otherwise you will not have the commands that I am about to show you. They were not in V3.


Go to File/Open and find the folder where your Tree SVG file is saved, select the file and click OK

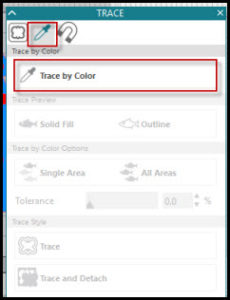

Select the Trace ToolSelect the Trace by Color icon. (only found in V4)

Click on the Trace by Color box as shown above.

The cursor will change to a picker.

Move to the image and left mouse click on one of the red dots.

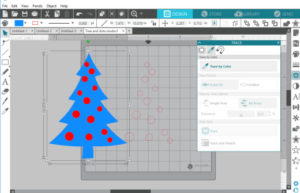

The file will now be showing a selection box and the red dots will appear as yellow. That’s what you want. The dots must be fully yellow as the Silhouette software will trace around the edges of the any yellow on the screen.

If they are not shaped as you want you would have to adjust the Tolerance slider in the Trace window.

If you’re happy with the formation of the yellow dots then click the Trace button at the bottom of the Trace screen.

The cut lines will now be ready on this part of the design.  In the image below I have moved the tree aside so that you can see the cut lines from the dots. You don’t need to do this.

Now for the tree itself.

With the Trace screen still open click on the Trace by Color  box once again and the left mouse click on the blue tree colour.

Click Trace if you’re happy with the yellow coverage.

The trace is now completed for the tree and you have a cut file ready to go.

You can now select the original coloured tree file and delete it.

Save the file.

Now its up to you to decide what you going to use the file for. You could use it for applique, you could create a template and use paint as a media or you could use heat transfer vinyl.

If you wish to cut out the dots in a different colour then you will need to separate the dots from the file and cut them separately.

To separate the dots you need to select the complete  file, right mouse click and choose Release Compound Path. The object will have small squares around each separate object as shown below

Deselect the design by clicking outside the selected object.

Select the tree object and drag it aside so the dots are left on the screen.

Lasso the dots, right mouse click and choose Group. This will group them together so that they won’t move individually on you.

Cut and Paste the dots onto a new Design Page if you’re cutting HTV or Outdoor Vinyl and remember to Flip Horizontally if you’re using HTV.

Return to the previous Design Page, move the tree back on the Design Page and, if using HTV, remember to Flip Horizontally as well.

Save your files.

Now you’re ready to send your cut file to your Cameo.

I won’t cover cutting the files here today as this has been long enough for me. As it is it’s taken me three days to write this! I’d written much more than this but in the meantime discovered the way I’ve shown above and had to go back and edit this post all over again. A bit frustrating but the way I’ve shown you is the better way. As with Embird there are always a number of ways to get to an end result. It doesn’t always matter how you get there but that you’re happy with the final result.

I also haven’t covered adding an Offset for the holes either. Just as you can do this in Embird Studio you can also do this in Silhouette Studio. An Offset will make allowances for any “shrinkage” where there are holes, overlaps etc. I didn’t show these today otherwise I’d be writing forever. But if you want to know about the Offset, for now you could go to Help on the Menu Bar and choose the User Manual. They will explain it in there.

I hope I haven’t made too many mistakes above – seeing as I deleted such a lot to almost start over again. And I hope it encourages you to have fun with both Embird and Silhouette Studio. And get Version 4 – Designer Edition. You’ll need it for these exercises.

Hope to hear from you.


Carolyn Keber





Well, let’s get started!

May 21st, 2017

I see that when I wrote my post in December 2015 I mentioned the ability in Embird to save SVG files (and JPG files) so that you could use them with your Silhouette Cameo.

I am going to chat a little about that to you today.

I have the original Silhouette Cameo 1 and since I bought it there have been two new Cameo machines. There’s both a 2 and a 3 now – but I have stuck with my original Cameo as its still working fine and does all I need. So anything I write here will be with me using the Cameo 1. There are, of course other little Silhouette machines as well but I have not had anything to do with them – I haven’t even seen them. So no questions please about the Cameo 2 and 3 or the other machines – unless its something easy that I can answer. I’ll try my best but cannot guarantee that I’ll no the answer. AND, please bear in mind that I am still learning the Silhouette Studio software as well. There might be other ways of doing what I show you – even easier ways – but as these lessons are coming to you free I figure that you get what you pay for. LOL!!!

If you are going to use Embird Studio to create any SVG files and export them into Silhouette Studio (all these Studio names gets confusing doesn’t it?) then you will need to buy the licence for the Silhouette Studio Designer Edition. Its just a code that you need to enter into the Silhouette software and well worth the money. I have gone one step further and bought the code yesterday for the Designer Plus version of Silhouette Studio as that allows you to open some embroidery file formats. (That will be interesting too but as I only got that yesterday you’re going to have to wait until I get that figured out). I will keep my brain active with scheming about all the things we might be able to do.

You might not have a Silhouette machine but I can highly recommend them – they’re so much fun and you can do such a lot on them. Not only cutting vinyl for t-shirts but you can use outdoor vinyl for decorating lots of stuff – like your car, coffee mugs, wine glasses – almost you name it and you can do it. You’ll end up like you were when you first started embroidery – everything will be covered in it. However there’s even more stuff that you can do – not only vinyl – you can cut applique shapes to use with your embroidery machine using Embird and the Cameo and you can even cut your fabric pieces and then vinyl the edges without using your embroidery machine. You can use vinyl edges instead and attach them with your domestic iron or a heat press if you have one. A friend of mine makes the most beautiful cards and decorations using her Cameo. I will add a photo here of some flowers that she has made just to whet your appetite and give you some ideas.

IMG_8513 Barbara makes exquisite items with her Cameo. She is very much into Card Making and other beautiful things whereas I’m a bit boring and just make things like images to put on my grandchildren’s clothing. There are loads of SVG designs around that you can use with your Cameo – just like there are loads of free and purchasable embroidery designs. But as you know, there’s always the time when you cannot find what you want as a design and you have to resort to creating it yourself. And that’s where making your own SVG designs in Embird Studio comes to the fore.

Here’s a couple of my designs I’ve used and then you can see how different mine are to Barbara’s.

Here’s Eevee – a little Pokémon character. Yes, I know that she is a licenced character but I am NOT selling these designs or the clothing that they are on. They are for my Pokémon crazy grandchildren and I’ve never found clothing with these more obscure characters on anyway. The same goes for the sports logo that I created. The hoodies cost over $150 NZD here and for me to make my basketball crazy grandson one cost me $25 for the hoodie and my time and vinyl for the design. I will never sell the design or the clothing if they are licenced. Its all for purely personal use.



I used a JPG in Embird Studio, created the shapes and saved it as an eof file (a must if you want to use it again) and then exported it as an SVG and opened it in the Silhouette software.

Personally I find the Silhouette Studio software not so great if you wish to create your own design – its a bit clunky – and that’s when I use the easy option and pop back into Embird Studio and create my design there. I have written a tutorial about how to create designs into Embird Studio before and how to save them as an SVG. Its available at Secrets of Embroidery. The Silhouette software is great for lots of other things like preparation of your design etc, etc but actually creating your own design in there isn’t as intuitive as Embird Studio.

When you open an image in the Silhouette Studio software you must “Trace” it first to convert it to lines for the Cameo to use as a guide for the blade to cut. Basic shapes are really easy to trace but when you come to a file with outlines then its not quite as simple and even though I have checked a lot of information I have yet to find any information about how to “Trace” a design with an outline and get a good trace. Maybe I’ve not been looking in the right place – and maybe you can point me in the right direction but I’m going to show you how to work in Silhouette Studio – primarily using Embird Studio to create your design in the first place.

In Embird Studio today, lets just create a simple shape and save it as an SVG for cutting.

Open Embird Studio and go to Shape/From Library/Basic and choose the Heart1.eof.

Click Open.

22-05-2017 3-40-32 PMSelect and Delete the Outline shape so that only the Heart fill remains.

Generate the stitches.

22-05-2017 3-42-37 PMGo to Design/Save As and save firstly as an EOF file. If you don’t do this your file will only save as the SVG and if you need to return and edit it as we often do, then you wont have an EOF to open as you didn’t save as that format.

Now go to Design/Export and Save in your preferred folder as an SVG file.

Great! Got that! Now open your Silhouette Studio Software. This only works if you have the Designer Edition upwards, remember – but well worth the upgrade fee (around $30- $50 I think)

Go to File/Open and move to the folder where you sabed the SVG file.

Select it and click OK. The SVG file will be on your Design Page

22-05-2017 3-50-41 PM

Select the image using  the Select Tool and move to the right side and click on the Color Palette icon. 22-05-2017 3-56-00 PMClick on the Black color and the heart will change to black. This is necessary to get a good trace for cutting.

Move to the right of the screen (I’m using the newer version 4 just released) and click on the Trace Tool 22-05-2017 3-52-57 PMThe Trace screen opens. Click on Select Trace Area and, holding down your left mouse button drag over the heart on the Design Page. The Heart should turn Yellow. This is what you want.

This is just a quick and simple intro to creating your own design, please bear in mind. I’m not going into too many details here today.

22-05-2017 3-58-39 PM

Once the design/heart is completely filled – as above – click on Solid Fill in the Trace screen and then click Trace near the bottom of the Trace Screen. You could also click on Trace and Detach seeing as you don’t need the original heart any longer.

Your file is now ready for your cameo to cut. You can select and right mouse click and delete the black fill if you used the Trace only option but if you used the Trace and Detach option then the file is now a Cut file. I only delete the black fill when I use Trace just to confirm that the cut lines are there. Your choice! 22-05-2017 4-04-56 PMNow move to the Send screen, choose your fabric/vinyl etc, select your blade settings, decide if you need a Test Cut, load your media and/or mat and click Send.

22-05-2017 4-06-51 PM

My Cameo wasn’t turned on so I have an error message on the screen saying it wasn’t connected but as I am only writing this and not cutting I don’t need the Cameo on.

Depending on what media you’re using you may have to flip your image. If you’re use Heat Transfer Vinyl for clothing then you need to flip. If you’re using Oracal 651 Outdoor Vinyl then you don’t as you use a transfer tape to attached it to your objects. For fabric (applique) then your design doesn’t need flipped if the fabric is right side up.

This is just a wee taste of how to create your design from Embird Studio and get it to cut in the Silhouette software. I will do some further wee lessons as I go. I cannot promise when but I will as I find the time. This is something else that you can get addicted too……


I hope that you enjoyed my come-back! I will write as and when I can. There’s so much more to show you all.

Take care for now.


Long time, no chat!

May 21st, 2017

Crikey, I cannot believe that its been two years since I’ve written on the Hooplah blog! You must be wondering if I’m still around or even alive and kicking! Well, yes, I am. I am mostly quite well however my lasting legacy from my brain aneurysm is that I cannot concentrate for very long and this makes it difficult to type for any length of time on the computer.
But after a few enquiries from some of you I thought that I might do free little snippets on here from time to time to do with Embird, embroidery, craft and whatever! I’ll try and add stuff that I think might be of some interest. But if its not of interest then you can bypass it but if you do like what I am writing about then feel free to tell your friends – let them know that they can come here for a “looksee”.

Embird and Cut files and my nine lives

May 3rd, 2015

A month or so ago Embird released its latest version (a free update for Embird 2015 users) that now creates cut files for the Cameo Silhouette (svg files) and the Brother Scan and Cut so that you can send those files to your machine and have them cut the files. I haven’t had a chance to play with this new command yet but I have heard that there are still little glitches with it. Like anything it takes time for something new to run smoothly. As soon as I can I will have a play and see how I get on with it. However for those interested I do have a lesson available at Secrets of Embroidery that shows you how to use the Silhouette Cameo in both Embird Editor and Embird Studio that will create the correct files for you. I wrote this lesson last year before the latest release of Embird and this method still applies.

Now, here is the reason that I have not had time to play with the latest version of Embird. On April 1st (Aprils Fools Day) 2015 I suffered a stroke. I will not forget Aprils Fools Day ever. It certainly was no joke! I had been out to dinner with my hubby and we walked home – about 500 meters – and when I reached home I didn’t feel well at all. I thought I’d got food poisoning as I had a stinking headache and felt really sick. My neck was aching and I couldn’t stand the lights on in the house nor any noise. I went to bed but got up again and started vomiting. This happened again during the night and the next morning, when my headache hadn’t gone away (I don’t generally suffer from headaches) I decided to check it out with my doctor as we were about to go away for two weeks holiday. I walked to the doctors surgery and didn’t come home for two weeks. The doctor checked me over and called an ambulance. I was rushed to hospital, had an MRI and then operated on the next day. It was a subarachnoid haemorrhage. The surgeon told us that approximately 50% of people do not survive. I had a lot of people praying for me and I am sure that’s why I made it through.  And of course, the surgeons skills.

I remained in hospital for two weeks while they waited for the danger period to pass. It was so nice to go home after I was released. But I was told not to drive my car for six months and I have to have another MRI after six months as well. My mother, her cousin and her cousins mother also had the same condition so it is apparently hereditary and now my children need to be screened as well to see if they have the same condition. Genetics, eh?

Anyway I was very fortunate as I had no signs of  any long lasting effect. No speech problems or any paralysis at all. Very lucky. I have 23cm of coils in my head to clip off the blood vessels to prevent any further bleeding from that area and I’ve also got to have a 30 minute nap every day to refresh my brain. I think I escaped very lightly and now that I’m in “the system” I will be checked regularly for further problems. Its taking me a while to get going and working on the computer is a bit tiring but I’m doing my best.

Keep me in your prayers please. I really appreciate your prayers and kind wishes.

On a lighter note I’m down to seven lives now as I’ve lost two of my nine lives so far. After escaping that rock fall last year while walking and now the stroke this year I’m down two lives. But I figured that two down after 65 years I should make it through okay. 🙂


Take care everyone –
